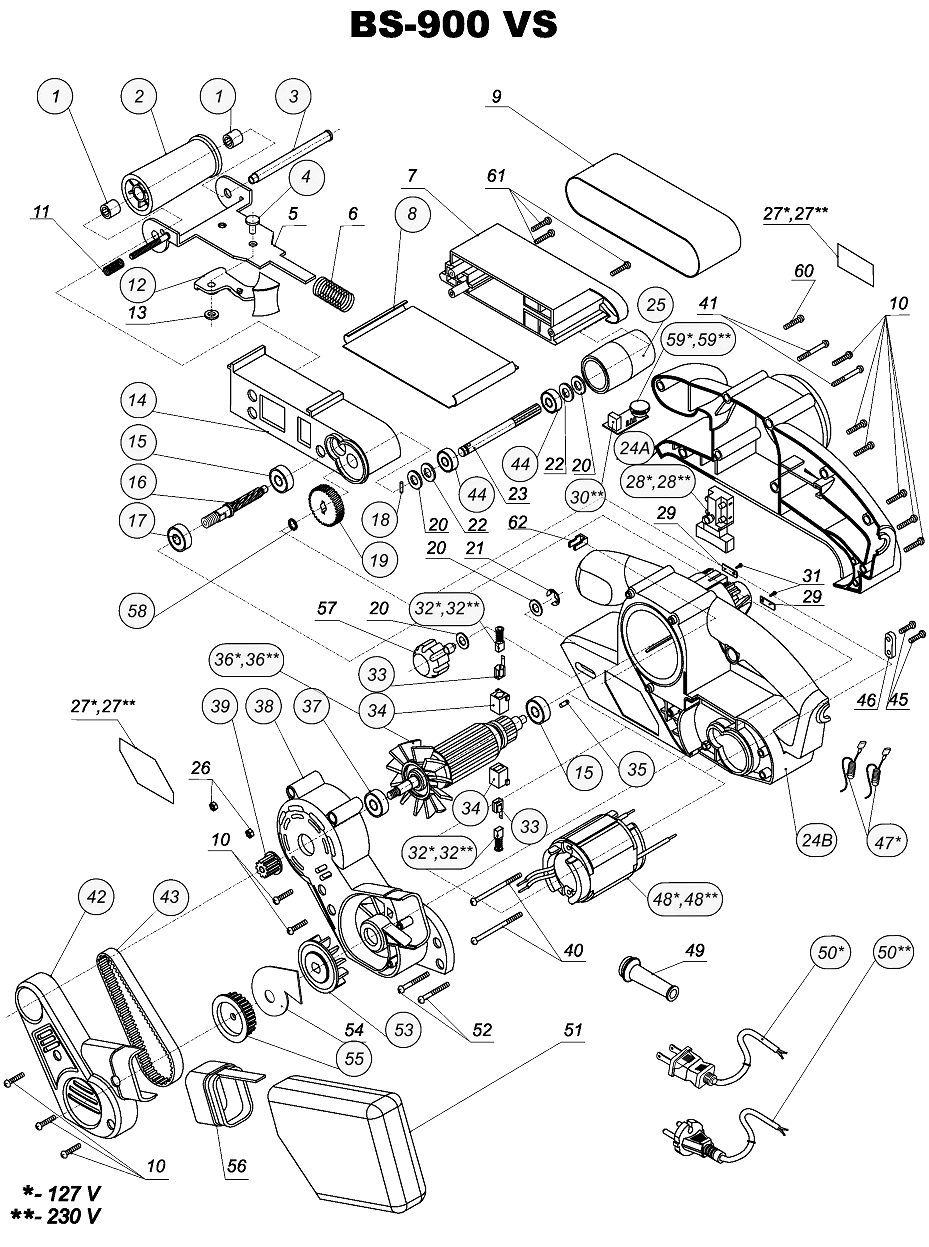

BS-900 VS
| П-п | Арт. | Название | Подбор (запрос наличия и цен) |
|---|---|---|---|
| 1 | Needle bearing HK0810 (2) | ||
| 2 | Front wheel | ||
| 3 | Front wheel shaft | ||
| 4 | Rivet | ||
| 5 | Front wheel holder | ||
| 6 | Spring Ø18x44 | ||
| 7 | Board cover | ||
| 8 | Bottom plate | ||
| 9 | Sander strap | ||
| 10 | Screw ST4x16 (13) | ||
| 11 | Spring Ø8xØ22 | ||
| 12 | Trigger | ||
| 13 | Washer Ø6 | ||
| 14 | Support frame | ||
| 15 | Ball bearing 606.Z (2) | ||
| 16 | Gear shaft | ||
| 17 | Ball bearing 61900.RS | ||
| 18 | Gear pin 3x16 | ||
| 19 | Big gear | ||
| 20 | Washer Ø8x1 (4) | ||
| 21 | E ring Ø8 | ||
| 22 | Washer Ø8x2 (2) | ||
| 23 | Back wheel shaft | ||
| 24A | Housing A | ||
| 24B | Housing B | ||
| 25 | Back wheel | ||
| 26 | Nut M6 (2) | ||
| 27* | Name plate (2) 127V | ||
| 27** | Name plate (2) 230V | ||
| 28* | Switch 127V | ||
| 28** | Switch 230V | ||
| 29 | Baffle (2) | ||
| 30* | Condenser 0.33 µf 230V | ||
| 31 | Screw ST3x10 (2) | ||
| 32* | Carbon brush (2) 127V | ||
| 32** | Carbon brush (2) 230V | ||
| 33 | Brush cover (2) | ||
| 34 | Brush holder (2) | ||
| 35 | Rubber pin | ||
| 36* | Armature 127V | ||
| 36** | Armature 230V | ||
| 37 | Ball bearing 608.2Z | ||
| 38 | Gear box | ||
| 39 | Small wheel | ||
| 40 | Screw ST4x58 (2) | ||
| 41 | Screw M4x75 (2) | ||
| 42 | Belt cover | ||
| 43 | Belt | ||
| 44 | Ball bearing 698.Z (2) | ||
| 45 | Screw ST4x14 (2) | ||
| 46 | Cord clip | ||
| 47** | Inductor Ø8,5x10 (2) | ||
| 48* | Stator 127V | ||
| 48** | Stator 230V | ||
| 49 | Rubber sleeve | ||
| 50* | Cord 127 V | ||
| 50** | Cord 230V | ||
| 51 | Dust bag | ||
| 52 | Screw ST4x60 (2) | ||
| 53 | Aluminium fan | ||
| 54 | Dustproof block | ||
| 55 | Big wheel | ||
| 56 | Suction joint | ||
| 57 | Wing nut M4 | ||
| 58 | Circlip for shaft Ø8 | ||
| 59* | VS wheel switch 127V | ||
| 59** | VS wheel switch 230V | ||
| 60 | Screw ST4x35 | ||
| 61 | Screw ST4x25(2) | ||
| 62 | Stopper |
