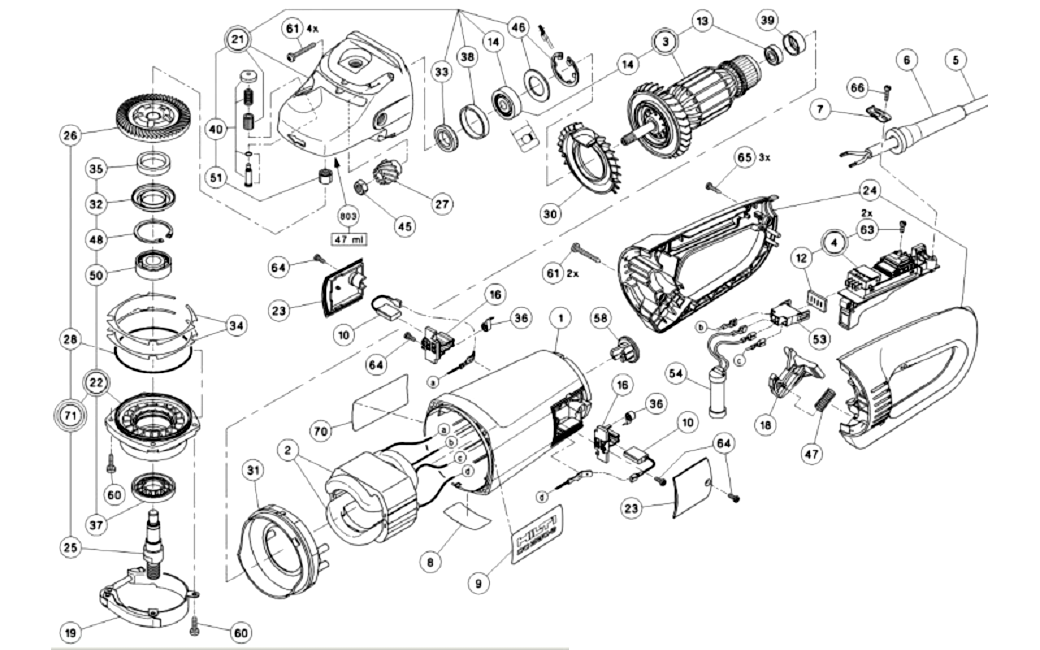

DC 230 S
| П-п | Арт. | Название | Подбор (запрос наличия и цен) |
|---|---|---|---|
| 1 | motor housing | ||
| 2 | stator 230V | ||
| 3 | rotor 230V assy | ||
| 4 | switch 220-240V assy(471,75) | ||
| 5 | supply cord 230V EU | ||
| 6 | protective sleeve | ||
| 7 |
|
supp.co.cl. | |
| 8 |
|
rating plate | |
| 9 |
|
adhesive label \\\"DC 230-S\\\" | |
| 10 |
|
carb. bru.set 282073 | |
| 12 |
|
gasket | |
| 13 |
|
ball bearing 8X22X7 | |
| 14 |
|
ball bearing 1RS | |
| 16 |
|
brush holder | |
| 18 |
|
detent | |
| 19 |
|
clamping band assy 5359 | |
| 21 |
|
gear housing assy | |
| 22 |
|
bearing plate | |
| 23 |
|
lid | |
| 24 |
|
grip | |
| 25 |
|
spindle | |
| 26 |
|
bevel gear Z=53 | |
| 27 |
|
bevel pinion (281810) | |
| 28 |
|
o-ring 80X1,8 | |
| 30 |
|
air deflector VORN | |
| 31 |
|
air deflector HINTEN | |
| 32 |
|
detent ring | |
| 33 |
|
rotary shaft seal | |
| 34 |
|
washer 0,15 MM | |
| 34 |
|
washer 0,30 MM | |
| 34 |
|
washer 0,10 MM | |
| 35 |
|
seal.ring | |
| 36 |
|
spring | |
| 37 |
|
seal.ring | |
| 38 |
|
ring LUEFTERSEIT. | |
| 39 |
|
ring KOLLEKTORSEIT. | |
| 40 |
|
pushbutton assy | |
| 45 |
|
hex nut | |
| 46 |
|
washer | |
| 47 |
|
compression spring | |
| 51 |
|
sinter bearing | |
| 53 |
|
connector housing | |
| 54 |
|
resistance | |
| 58 |
|
trunking | |
| 60 |
|
taptite screw M5X18 | |
| 61 |
|
recess tapping screw 4,8X38 | |
| 63 |
|
sl pan head screw M4X10 | |
| 64 |
|
screw | |
| 65 |
|
recess tapping screw 3,9X19 | |
| 66 |
|
slotted tapping screw ST 3,9X16-F | |
| 70 |
|
adhesive label | |
| 71 |
|
bearing plate assy |
