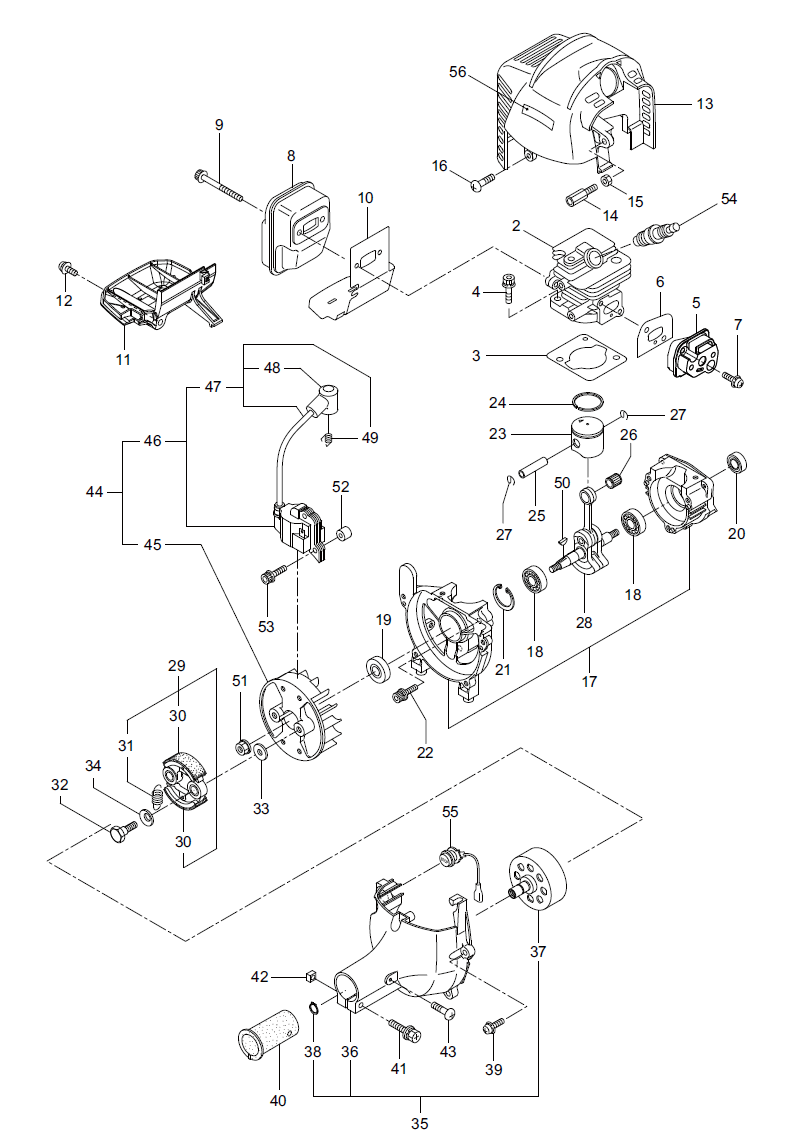

ENGINE
| П-п | Арт. | Название | Подбор (запрос наличия и цен) |
|---|---|---|---|
| 3-1 | Engine EE203/03 | ||
| 3-2 | Cylinder New gasket required | ||
| 3-3 | Gasket | ||
| 3-4 | Cap Screw M5x20WSW | ||
| 3-5 | Insulator New gasket required | ||
| 3-6 | Gasket | ||
| 3-7 | Screw M5x25WSW | ||
| 3-8 | Muffl er Comp. | ||
| 3-9 | Screw M5x55 | ||
| 3-10 | Gasket | ||
| 3-11 | Under Cover | ||
| 3-12 | Screw M5x16WSW | ||
| 3-13 | Top Cover | ||
| 3-14 | Screw M6x15 | ||
| 3-15 | Nut M6 | ||
| 3-16 | Screw 4x16 | ||
| 3-17 | Crankcase | ||
| 3-18 | Bearing | ||
| 3-19 | Oil Seal | ||
| 3-20 | Oil Seal | ||
| 3-21 | Snap Ring #28 | ||
| 3-22 | Cap Screw M5x30 | ||
| 3-23 | Piston | ||
| 3-24 | Piston Ring | ||
| 3-25 | Piston Pin | ||
| 3-26 | Bearing, Needle | ||
| 3-27 | Clip, Piston | ||
| 3-28 | Crankshaft/Conn.Rod Ass\\\'y | ||
| 3-29 | Clutch Ass\\\'y Incl.30,31 | ||
| 3-30 | Clutch Shoe (2)Required | ||
| 3-31 | Spring, Clutch | ||
| 3-32 | Clutch Bolt | ||
| 3-33 | Washer 6.1x15x1.6 | ||
| 3-34 | Wave Washer | ||
| 3-35 | Fan Cover Ass\\\'y Incl.36-38 | ||
| 3-36 | Fan Cover | ||
| 3-37 | Clutch Drum | ||
| 3-38 | Snap Ring #10 | ||
| 3-39 | Screw M5x20WSW | ||
| 3-40 | Cushion | ||
| 3-41 | Screw M5x28WSW | ||
| 3-42 | Nut M5 | ||
| 3-43 | Screw M4x14 | ||
| 3-44 | Magneto Ass\\\'y Incl.45-49 | ||
| 3-45 |
|
Rotor/Fan | |
| 3-46 |
|
Ignition Coil Ass\\\'y Incl.47-49 | |
| 3-47 |
|
Spark Plug Wire Ass\\\'y Incl.48,49 | |
| 3-48 |
|
Plug Boot | |
| 3-49 |
|
Connector | |
| 3-50 |
|
Woodruff Key 3x10 | |
| 3-51 |
|
Nut, Rotor M8 | |
| 3-52 |
|
Spacer | |
| 3-53 |
|
Cap Screw M4x25 | |
| 3-54 |
|
Spark Plug BPMR8Y | |
| 3-55 |
|
Stop Switch Ass\\\'y | |
| 3-56 |
|
Label |
