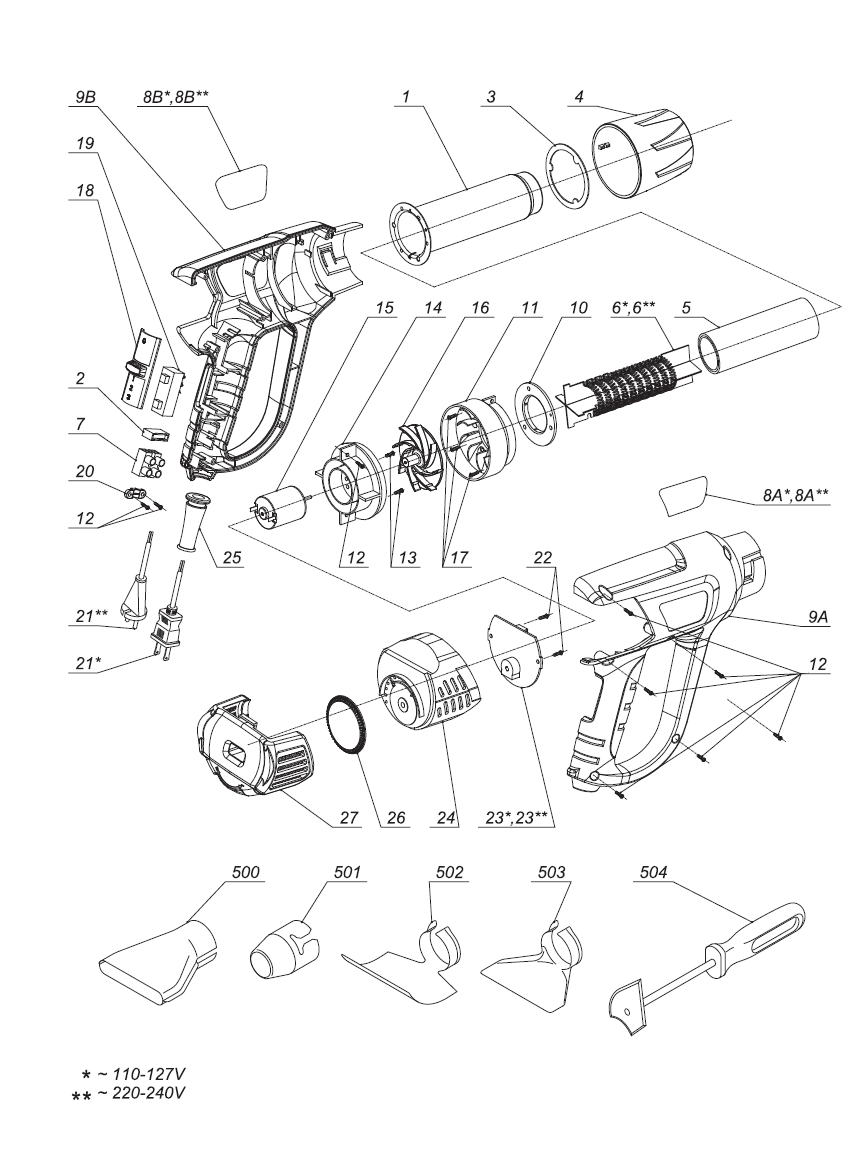

HLP20-600K
| П-п | Арт. | Название | Подбор (запрос наличия и цен) |
|---|---|---|---|
| 1 | Steel tube | ||
| 2 | Condenser 0.22μF 220-240V | ||
| 3 | Positioner | ||
| 4 | Plastic tube | ||
| 5 | Mecanite paper tube | ||
| 6* | Micanite housing, micanite fix and heating element 110-127 V | ||
| 6** | Micanite housing, micanite fix and heating element 220-240 V | ||
| 7 | Terminal block | ||
| 8A* | Brand label 110-127V | ||
| 8B* | Spec. label 110-127V | ||
| 8A** | Brand label 220-240V | ||
| 8B** | Spec. label 220-240V | ||
| 9A | Housing A | ||
| 9B | Housing B | ||
| 10 | Plastic ring | ||
| 11 | Fan cave | ||
| 12 | Screw ST3x15 (9) | ||
| 13 | Screw ST2,5x4 (2) | ||
| 14 | Motor base | ||
| 15 | DC motor | ||
| 16 | Fan blade | ||
| 17 | Screw ST3x10 (3) | ||
| 18 | Switch slide | ||
| 19 | Switch 110-240V | ||
| 20 | Cord clip | ||
| 21* | Cord 110-127V | ||
| 21** | Cord 220-240V | ||
| 22 | Screw ST3x8 (2) | ||
| 23* | PCB 110-127V | ||
| 23** | PCB 220-240V | ||
| 24 | Inner cover | ||
| 25 | Rubber sleeve | ||
| 26 | PSB wheel knob | ||
| 27 | Back cover | ||
| 500 | Surface nozzle | ||
| 501 | Spot nozzle | ||
| 502 | Reflector nozzle | ||
| 503 | Deflector nozzle | ||
| 504 | Scraper |
