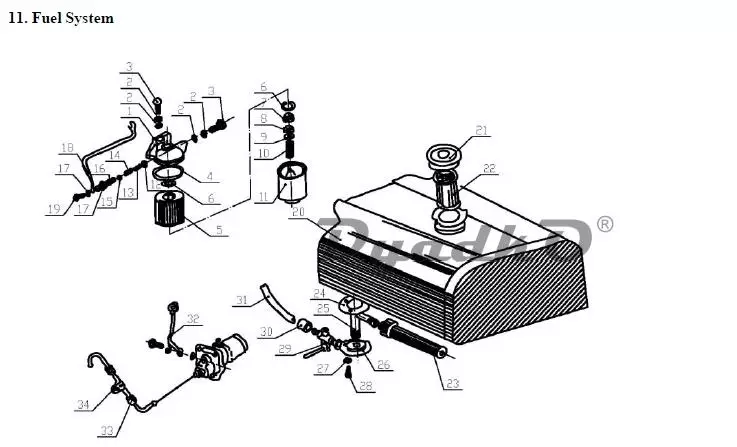

11. Fuel System
| П-п | Название | Подбор (запрос наличия и цен) |
|---|---|---|
| 1 | Fuel filter cover | |
| 2 | Washer | |
| 3 | Pipe connection bolt | |
| 4 | Seal ring | |
| 5 | Bracket | |
| 6 | Seal ring | |
| 7 | Washer | |
| 8 | Seal ring | |
| 9 | Washer | |
| 10 | Spring | |
| 11 | Fuel filter body | |
| 12 | Washer | |
| 13 | Screw | |
| 14 | Spring | |
| 15 | Steel ball | |
| 16 | One way valve seat | |
| 17 | Washer | |
| 18 | Fuel retun pipe | |
| 19 | Pipe connection bolt | |
| 20 | Fuel tank | |
| 21 | Fuel tank cap | |
| 22 | Filling screen | |
| 23 | Primary fuel filter | |
| 24 | Packing | |
| 25 | Fuel outlet pipe | |
| 26 | Fuel cock seat | |
| 27 | Washer | |
| 28 | Hexagon bolt M6x16 | |
| 29 | Fuel cock | |
| 30 | Pipe sleeve | |
| 31 | Fuel feed | |
| 32 | Fuel pipe | |
| 33 | High pressure fuel pipe and it\'s accessories | |
| 34 | Pipe clip |
